Saddle pressure measurements explained !
Dec 2009
Saddle pressure measurements are
made by a special sensor pad containing 446 sensors. These 446
sensors take 60 measurements each second and relay (wireless) the
results to a receiver, connected to a PC. At the PC these measurements
are stored and can be processed. These measurements can be synchronized
with video, to see the combination of the pressure measurements and
actual video.
The processing of the measurements is done off-line, and gives images which contain:
- movie of pressure distribution over time, to study general pressure distribution over time.
- average and max pressure distritbution, allowing identification of overall and special pressure points
- left / right side summation of pressure, allowing study of assymetries.
|
In this video, you find the continuous output stream (retarded by a factor 3).

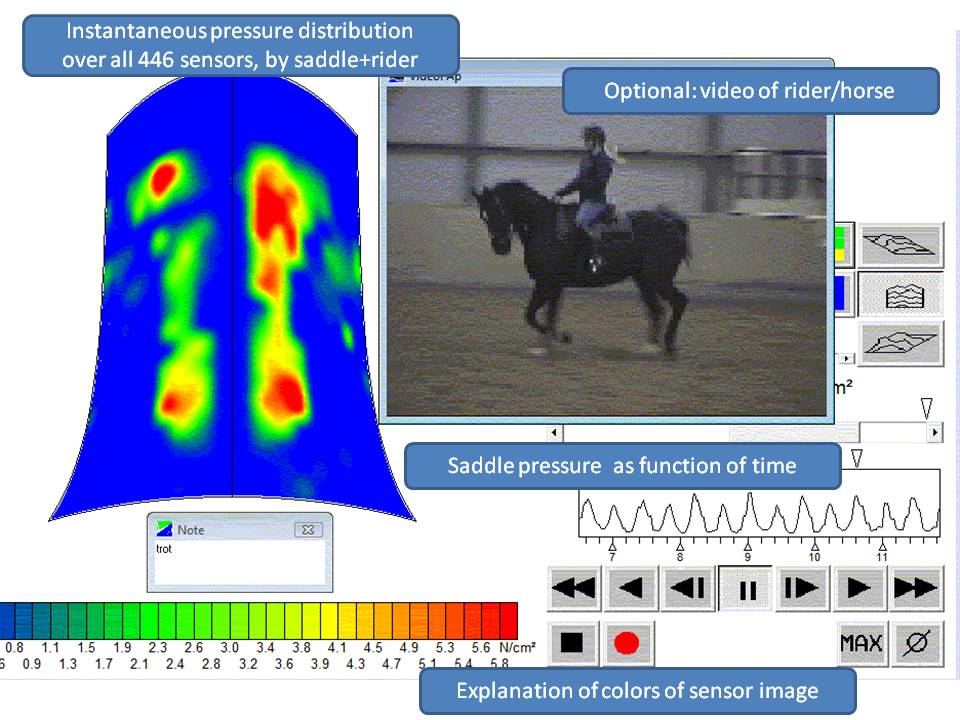

In the figure below, you find some of the output facilities of the saddle pressure system
|
|
